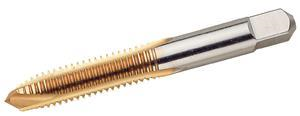

5/16-24 in. UNC HSS TiCN H4 Plug Chamfer 3 Flute Gun Tap
- Item Code: 19020-WIDIA
- Brand: WIDIA
- Unit Size: 1
| Overall Length Metric |
69.058 mm |
| Thread Diameter (in.) |
0.3125" |
| Brand |
WIDIA |
| Thread Diameter |
5/16" |
| Cutting Direction |
Right |
| Thread Limit |
H4 |
| Coating/Finish |
TiCN |
| Series |
GUN |
| Thread Size |
5/16 - 24 |
| Adapter/Shank/Bore Dia (in.) |
0.3180" |
| Chamfer |
Plug |
| Material |
HSS |
| Thread Diameter (mm) |
7.94 mm |
| Thread Length (in.) |
1.1250" |
| Coolant Through |
No |
| Type |
Spiral Point Tap |
| Adapter/Shank/Bore Dia (mm) |
8.08 mm |
| Number of Flutes |
3 |
| Overall Length Inches |
2.7188" |
| Thread Length (mm) |
28.58 mm |
