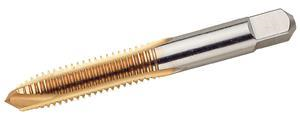

7/16-24 in. UNC HSS TiCN H3 Plug Chamfer 3 Flute Gun Tap

  • Item Code: 19024-WIDIA
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Overall Length Metric 80.167 mm
Thread Diameter (in.) 0.4375"
Thread Diameter 7/16"
Thread Length (in.) 1.4375"
Overall Length Inches 3.1562"
Brand WIDIA
Cutting Direction Right
Number of Flutes 3
Coating/Finish TiCN
Adapter/Shank/Bore Dia (mm) 8.20 mm
Coolant Through No
Thread Length (mm) 36.51 mm
Chamfer Plug
Material HSS
Thread Limit H3
Adapter/Shank/Bore Dia (in.) 0.3230"
Series GUN
Thread Diameter (mm) 11.11 mm
Thread Size 7/16 - 14
Type Spiral Point Tap
