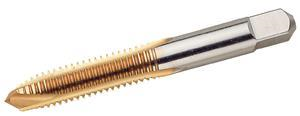

1/2-20 in. UNC HSS TiCN H3 Plug Chamfer 3 Flute Gun Tap
- Item Code: 19027-WIDIA
- Brand: WIDIA
- Unit Size: 1
| Adapter/Shank/Bore Dia (in.) |
0.3670" |
| Overall Length Inches |
3.3750" |
| Type |
Spiral Point Tap |
| Thread Length (mm) |
42.07 mm |
| Thread Diameter (mm) |
12.70 mm |
| Adapter/Shank/Bore Dia (mm) |
9.32 mm |
| Series |
GUN |
| Cutting Direction |
Right |
| Number of Flutes |
3 |
| Overall Length Metric |
85.725 mm |
| Thread Diameter |
1/2" |
| Thread Length (in.) |
1.6562" |
| Thread Size |
1/2 - 20 |
| Chamfer |
Plug |
| Coating/Finish |
TiCN |
| Material |
HSS |
| Thread Limit |
H3 |
| Coolant Through |
No |
| Thread Diameter (in.) |
0.5000" |
| Brand |
WIDIA |
