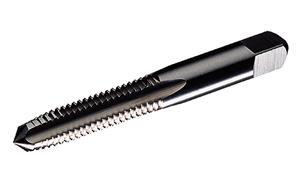

#2-56 UNC HSS TiCN H2 3 Flute Plug Chamfer Hand Tap
- Item Code: 19122-WIDIA
- Brand: WIDIA
- Unit Size: 1
| Coolant Through |
No |
| Overall Length Metric |
44.45 mm |
| Thread Diameter (in.) |
0.0860" |
| Thread Length (mm) |
11.11 mm |
| Chamfer |
Plug |
| Series |
5305/2305 |
| Thread Size |
#2 - 56 |
| Adapter/Shank/Bore Dia (in.) |
0.1410" |
| Brand |
WIDIA |
| Thread Limit |
H2 |
| Coating/Finish |
TiCN |
| Thread Length (in.) |
0.4375" |
| Thread Diameter (mm) |
2.18 mm |
| Adapter/Shank/Bore Dia (mm) |
3.58 mm |
| Cutting Direction |
Right |
| Material |
HSS |
| Number of Flutes |
3 |
| Overall Length Inches |
1.7500" |
| Type |
Hand Tap |
