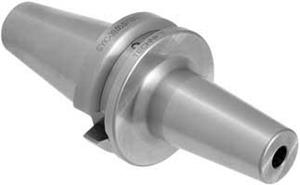

135mm Length x 6mm Shank, BT40 ShrinkFIT Holder

  • Item Code: 19136-135
  • Brand: Techniks
  • Unit Size: 1

Description

Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.

Features Tech Specs

Features

Back To Top
    • Maximum T.I.R. only 0.0001"
    • Balanced to 25,000 RPM at G2.5
    • Comes with coolant-thru set screw installed.

Tech Specs

Back To Top
Body Diameter (in) 1.024
Body Diameter (mm) 26
Gage Length (mm) 135
Gage Length-Face Contact (in) 5.23
Gage Length (in) 5.31
Nose Diameter (in) 0.354
Nose Diameter (mm) 9
Overall Length (in) 7.88
Shank Size (in) 0.2362
Shank Size (mm) 6
Brand Techniks
Overall Diameter (mm) 63
Collet Series N/A
Overall Diameter (in) 2.48
Type ShrinkFIT Tool Holder
Unit of Tool Metric
Gage Length-Face Contact (mm) 133
Shank Range (in) Exact Size
Shank Range (mm) Exact Size
Style Single-Ended
Material H13 Steel
Overall Length (mm) 200.4
Mount BT40
