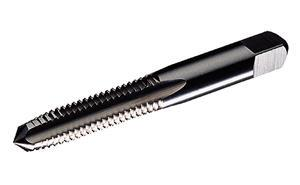

5/16-24 in. UNF HSS TiCN H3 4 Flute Bottoming Hand Tap

  • Item Code: 19187
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Overall Length Metric 69.058 mm
Thread Size 5/16 - 24
Thread Diameter (mm) 7.94 mm
Thread Diameter (in.) 0.3125"
Brand WIDIA
Cutting Direction Right
Coating/Finish TiCN
Number of Flutes 4
Thread Length (in.) 1.1250"
Thread Diameter 5/16"
Thread Limit H3
Adapter/Shank/Bore Dia (in.) 0.3180"
Chamfer Bottomming
Material HSS
Type Hand Tap
Coolant Through No
Series 5303/2303
Adapter/Shank/Bore Dia (mm) 8.08 mm
Overall Length Inches 2.7188"
Thread Length (mm) 28.58 mm
