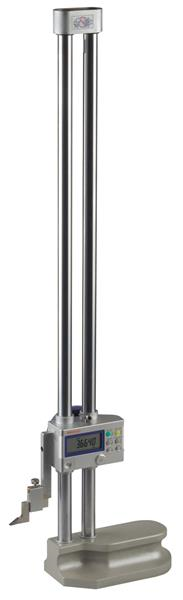

0-18 Inch/450mm, .0005 Inch/.0002 Inch/0.01mm/0.005mm, Standard Type Digimatic Height Gage, With SPC Output

  • Item Code: 192-631-10
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Double-column structure ensures high measuring accuracy.
    • Coarse/fine feed switching.
    • Switchable resolution and two preset reference height.

Tech Specs

Back To Top
Accuracy ±002 In
Resolution or Graduation .0005 In; .0002 In
Primary Measuring Range Lower - Metric 0mm
Data Output Y
Range 0 - 18 In/0 - 450mm
Brand Mitutoyo
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Data Output Cable - 80 inch 905409
Individual or Set Individual
Primary Measuring Range Upper - Inch 18 In
Primary Measuring Range Upper - Metric 450mm
Data Output Cable - 40 inch 905338
Primary (Outside Diameter) Contact Point Material Carbide
