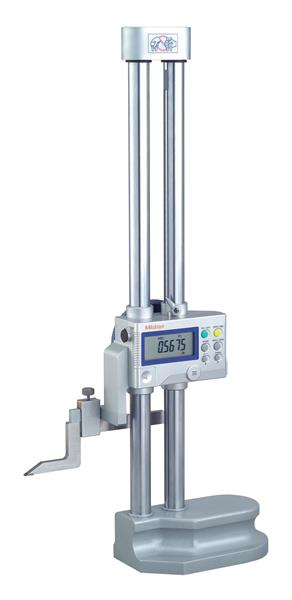

0-12 Inch/300mm, .0005 Inch/.0002 Inch/0.01mm/0.005mm, Multi-Function Type Digimatic Height Gage, With SPC Output

  • Item Code: 192-670-10
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Highly versatile multi-function type.
    • Carbide-tipped long scriber is provided.
    • Rigid construction ensures repeatable measurement.

Tech Specs

Back To Top
Range 0-12 In/0 - 300mm
Data Output Cable - 80 inch 905409
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Inch 12 In
Resolution or Graduation .0005 In; .0002 In
Individual or Set Individual
Primary Measuring Range Upper - Metric 300mm
Data Output Y
Primary Measuring Range Lower - Metric 0mm
Data Output Cable - 40 inch 905338
Accuracy ±.001 In
Brand Mitutoyo
