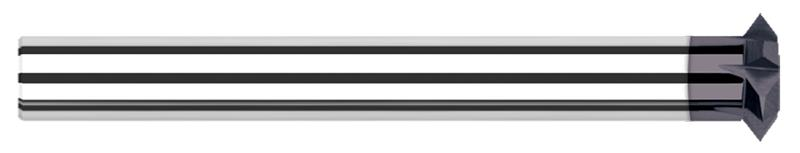

1.0000 in. (1) Cutter Diameter x 0.3750 in. (3/8) Width 8 Flute AlTiN Coated Carbide Reduced Shank Pointed Double Angle Shank Cutter

  • Item Code: 19230-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Reduced straight shank allows any chucking depth
    • Tip of included angle ground to a point
    • 60 degree angle can also be used for thread milling
    • Solid carbide head brazed onto steel shank
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 8
Overall Length Decimal 4.3750"
Shank Diameter 0.6250" (5/8)
Included Angle 90
Cutter Width 0.3750" (3/8)
Brand Harvey Tool
Decimal Cutting Diameter 1.0000"
Coating AlTiN
Fractional Cutting Diameter 1"
Overall Length Fractional 4-3/8"
Angle per Side 45
Material Solid Carbide
