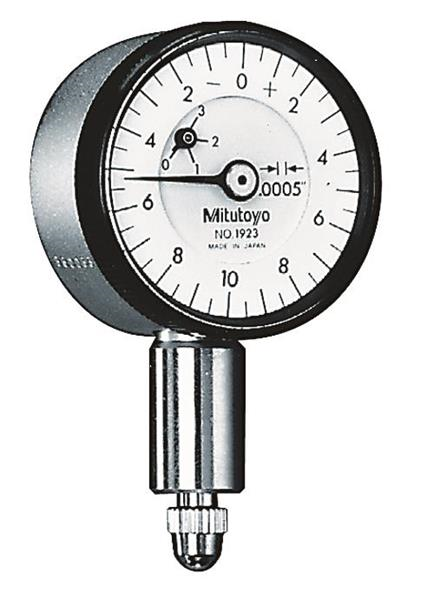

.0005 In, .05 In/(.02 In per rev) Dial Indicator, 0-5-0, Flat Back, Series 0, 3/8 In stem diameter, Jeweled

  • Item Code: 1923TB-10
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Compact for working in small areas.

Tech Specs

Back To Top
Dial Face Reading 0-10-0
Range 0 - .05 in.
Range Per Revolution .02 In
Measuring Force =1.4N
Accuracy .0005 in.
Face Color White
Mechanical or Digital Mechanical
Resolution or Graduation .001 in.
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Inch .05 in.
Individual or Set Individual
Primary Measuring Range Lower - Inch 0 in.
Stem Diameter Measurement 3/8 in.
Back Type Flat
Brand Mitutoyo
