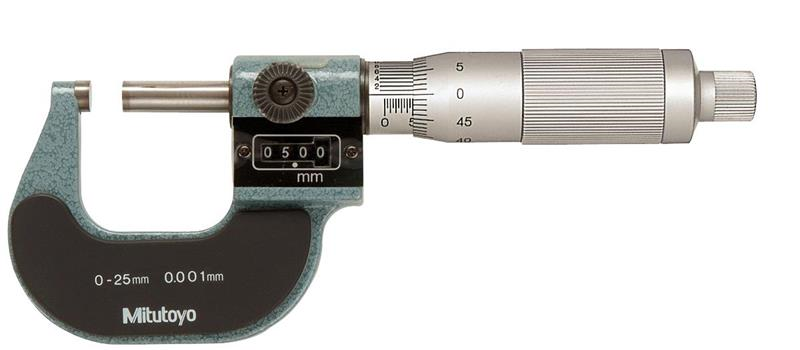

0-25mm, 0.001mm Digit Counter Outside Micrometer, Carbide Tip, Ratchet Stop

  • Item Code: 193-111
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Mechanical digit counter with 0.01mm or .001 In reading for quick and error-free reading.
    • Supplied in a fitted plastic case.
    • Has a Ratchet Stop for constant measuring force.

Tech Specs

Back To Top
Contact Point Flatness 0.6µm
Parallelism (2+R/100)µm
Primary Measuring Range Lower - Metric 0mm
Contact Point Diameter 6.35mm
Finish Enamel
Range 0 - 25mm
Thimble Diameter Measurement 18mm
Accuracy ±2µm
Brand Mitutoyo
Individual or Set Individual
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Spindle Lock Y
Clutch Ratchet Stop
Primary Measuring Range Upper - Metric 25mm
Resolution or Graduation 0.001mm
Spindle Face Flat
