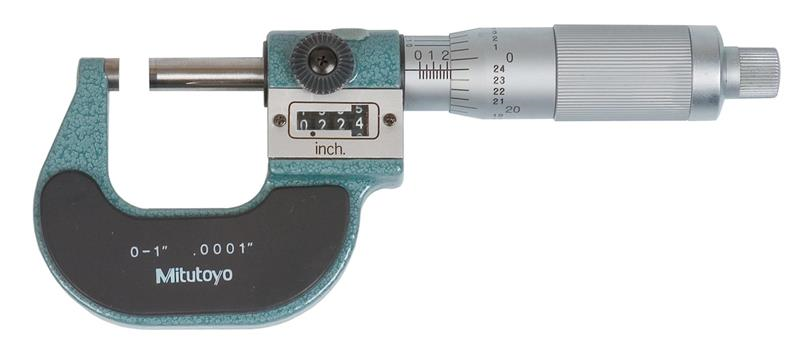

0-1 Inch, 0.0001 Inch Digit Counter Outside Micrometer, Carbide Tip, Friction Thimble

  • Item Code: 193-211
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Mechanical digit counter with 0.01mm or .001 In reading for quick and error-free reading.
    • Supplied in a fitted plastic case.
    • Has a Friction Thimble for constant measuring force.

Tech Specs

Back To Top
Parallelism [.00008In+.00004In(L/4)]In
Brand Mitutoyo
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 0 In
Contact Point Flatness .000024 In
Clutch Friction Thimble
Finish Enamel
Spindle Lock Y
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
Resolution or Graduation .0001 In
Spindle Face Flat
Accuracy ±.0001 In
Range 0 - 1 In
Contact Point Diameter 6.35mm
Mechanical or Digital Mechanical
Thimble Diameter Measurement 18mm
