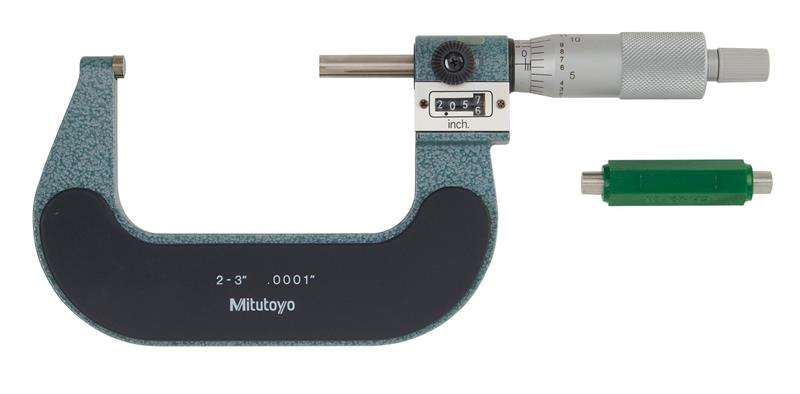

2-3 Inch, 0.0001 Inch Digit Counter Outside Micrometer, Carbide Tip, Ratchet Stop, With Standard

  • Item Code: 193-213
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Mechanical digit counter with 0.01mm or .001 In reading for quick and error-free reading.
    • Supplied in a fitted plastic case.
    • Has a Ratchet Stop for constant measuring force.

Tech Specs

Back To Top
Accuracy ±.0001 In
Mechanical or Digital Mechanical
Parallelism [.00008In+.00004In(L/4)]In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 2 In
Contact Point Diameter 6.35mm
Contact Point Flatness .000024 In
Finish Enamel
Primary Measuring Range Upper - Inch 3 In
Thimble Diameter Measurement 18mm
Brand Mitutoyo
Individual or Set Individual
Range 2 - 3 In
Spindle Lock Y
Clutch Ratchet Stop
Resolution or Graduation .0001 In
Spindle Face Flat
