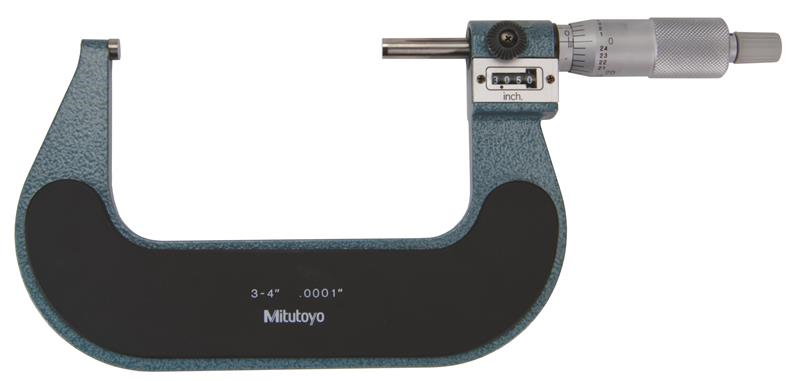

3-4 Inch, 0.0001 Inch Digit Counter Outside Micrometer, Carbide Tip, Ratchet Stop, With Standard

  • Item Code: 193-214
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Mechanical digit counter with 0.01mm or .001 In reading for quick and error-free reading.
    • Supplied in a fitted plastic case.
    • Comes with a standard bar.

Tech Specs

Back To Top
Individual or Set Individual
Primary Measuring Range Upper - Inch 4 In
Contact Point Diameter 6.35mm
Spindle Lock Y
Accuracy ±.00015 In
Resolution or Graduation .0001 In
Spindle Face Flat
Brand Mitutoyo
Mechanical or Digital Mechanical
Thimble Diameter Measurement 18mm
Finish Enamel
Contact Point Flatness .000024 In
Parallelism [.00008In+.00004In(L/4)]In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 3 In
Range 3 - 4 In
Clutch Ratchet Stop
