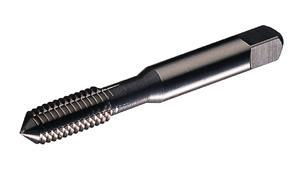

M3 x 0.5 HSS TiCN Coated D5 Bottom Entry Taper TRU-LEDE? Thread Forming Tap

  • Item Code: 19567
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Overall Length Metric 49.276 mm
Coolant Through No
Thread Diameter (in.) 0.1181"
Coating/Finish TiCN
Thread Length (mm) 7.95 mm
Thread Limit D5
Adapter/Shank/Bore Dia (mm) 3.58 mm
Cutting Direction Right
Material HSS
Thread Size M3 X 0.5
Overall Length Inches 1.9400"
Type Forming Tap
Thread Length (in.) 0.3130"
Adapter/Shank/Bore Dia (in.) 0.1410"
Brand WIDIA
Chamfer Bottomming
Series TRU-LEDE
Thread Diameter (mm) 3.00 mm
Thread Type Metric
