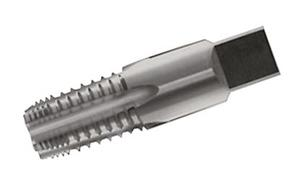

1/8-27 Oxide 5 Flute HSS NPT/ANPT Interrupted Thread 2 1/2-3 1/2 Pitches Chamfered Pipe Tap
- Item Code: 19650
- Brand: WIDIA
- Unit Size: 1
Description
Series 5319
NPT/ANPT and NPTF Production Taper Pipe Taps with Interrupted Threads
Features
Back To Top- Production Taps
- Standard Pipe Chamfer
- Standard Projection
Tech Specs
Back To Top| Chamfer | Taper |
|---|---|
| Diameter | 1/8 - 27 |
| Type | Pipe |
| Unit of Measure | Inch |
| Brand | WIDIA |
| Shank Style | Square |
| Square Size | 0.2340 Inch |
| Thread Length | 0.7500 Inch |
| Material | HSS |
| Number of Flutes | 5 |
| Threads Per Inch | 27 |
| Coating | Oxide |
| Product Name | Tap |
| Shank Diameter | 7/16 Inch |
| Thread Type | NPT/ANPT |
| Overall Length | 2-1/8 Inch |
