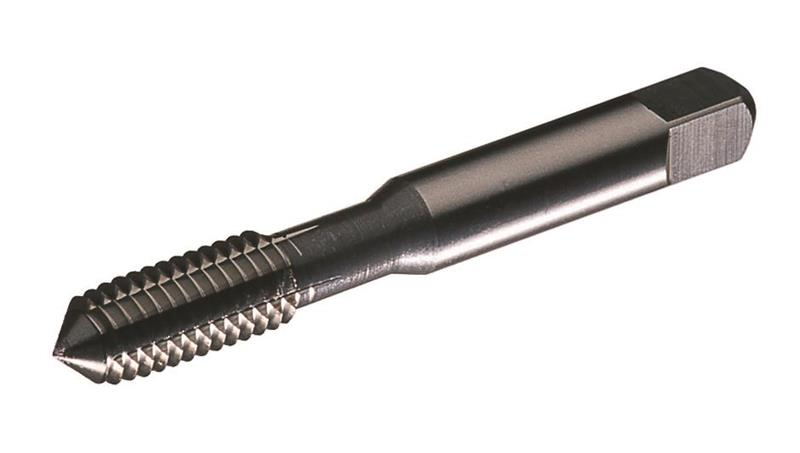

1/4-20 HSS TiN Coated H4 Plug TRU-LEDE™ Thread Forming Tap
- Item Code: 19841
- Brand: WIDIA
- Unit Size: 1
Description
Series 2500/5500
Machine Screw and Fractional
Plug Entry Taper
Through Holes in General Machining Applications
Features
Back To Top- Production Tap
Tech Specs
Back To Top| Brand | WIDIA |
|---|---|
| Flute Style | Straight |
| Hand of Tool | Neutral |
| Shank Style | Square |
| Unit of Measure | Inch |
| Coolant Through (Yes/No) | No |
| Thread Type | NC/UNC/UNJC |
| Shank Diameter | 0.2550 Inch |
| Overall Length | 2-1/2 Inch |
| Coating | TiN |
| Diameter | 1/4 - 20 |
| Threads Per Inch | 20 |
| Product Name | Tap |
| Chamfer | Plug |
| Type | Thread Forming |
| Thread Limit | H4 |
| Square Size | 0.1910 Inch |
| Thread Length | 0.6250 Inch |
