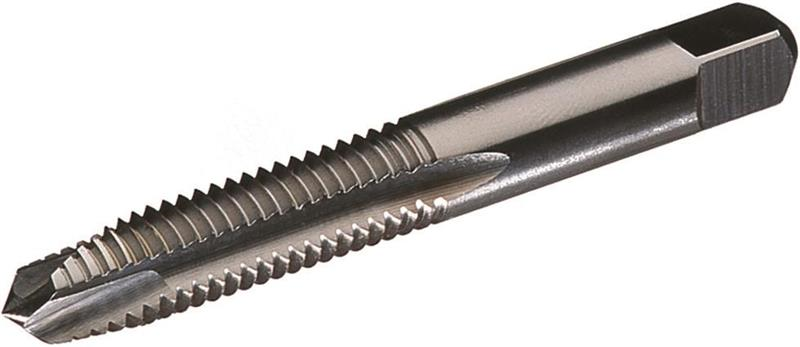

M3 x 0.50 HSS TiN Coated D3 2-Flute Gun Tap
- Item Code: 19920
- Brand: WIDIA
- Unit Size: 1
Description
Series 5351/2351
Spiral Point, Plug Chamfer
Through Holes in General Machining Applications
Tech Specs
Back To Top| Diameter | M3 X 0.5 |
|---|---|
| Coolant Through (Yes/No) | No |
| Thread Length | 0.6250 Inch |
| Thread Limit | D3 |
| Brand | WIDIA |
| Hand of Tool | Neutral |
| Shank Style | Square |
| Unit of Measure | Inch |
| Shank Diameter | 0.1410 Inch |
| Number of Flutes | 2 |
| Product Name | Tap |
| Thread Class | 6H |
| Pitch | 0.50 MM |
| Thread Type | METRIC |
| Coating | TiN |
| Flute Style | Straight |
| Chamfer | Plug |
| Overall Length | 1-15/16 Inch |
