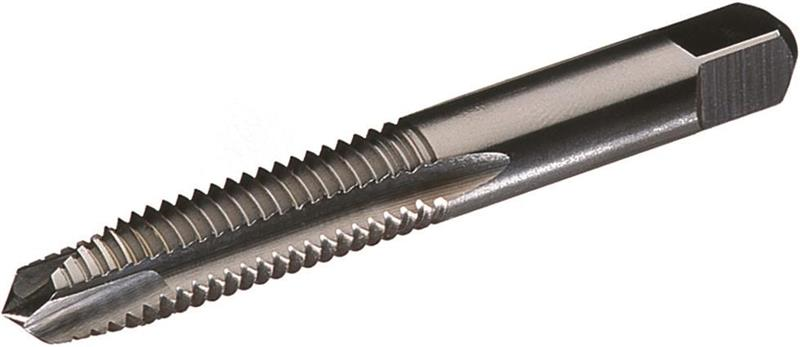

M5 x 0.80 HSS TiN Coated D4 2-Flute Gun Tap
- Item Code: 19922
- Brand: WIDIA
- Unit Size: 1
Description
Series 5351/2351
Spiral Point, Plug Chamfer
Through Holes in General Machining Applications
Tech Specs
Back To Top| Coolant Through (Yes/No) | No |
|---|---|
| Overall Length | 2-3/8 Inch |
| Thread Type | METRIC |
| Brand | WIDIA |
| Flute Style | Straight |
| Hand of Tool | Neutral |
| Shank Style | Square |
| Unit of Measure | Inch |
| Diameter | M5 X 0.8 |
| Number of Flutes | 2 |
| Product Name | Tap |
| Thread Class | 6H |
| Pitch | 0.80 MM |
| Shank Diameter | 0.1940 Inch |
| Chamfer | Plug |
| Thread Length | 0.8750 Inch |
| Thread Limit | D4 |
| Coating | TiN |
