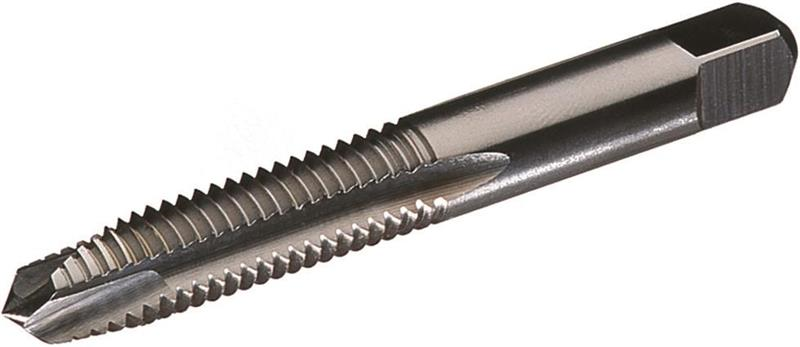

M6 x 1 HSS TiN Coated D5 2-Flute Gun Tap
- Item Code: 19923
- Brand: WIDIA
- Unit Size: 1
Description
Series 5351/2351
Spiral Point, Plug Chamfer
Through Holes in General Machining Applications
Tech Specs
Back To Top| Thread Length | 25.40 MM |
|---|---|
| Chamfer | Plug |
| Coolant Through (Yes/No) | No |
| Pitch | 1.00 MM |
| Thread Type | METRIC |
| Unit of Measure | Metric |
| Hand of Tool | Right Hand |
| Number of Flutes | 2 |
| Overall Length | 63.50 MM |
| Thread Class | 6H |
| Diameter | M6 X 1 |
| Thread Limit | D5 |
| Brand | WIDIA |
| Coating | TiN |
| Shank Style | Square |
| Square Size | 4.85 MM |
| Product Name | Tap |
| Shank Diameter | 6.477 MM |
| Type | Hand |
