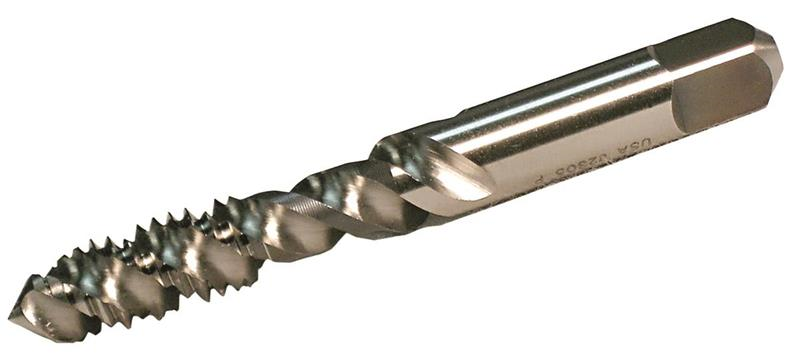

M10 x 1.50 HSS TiN Coated 3-Flute D6 Bottoming Spiral-Flute Tap
- Item Code: 19938
- Brand: WIDIA
- Unit Size: 1
Description
Series 5364
Bottoming Chamfer
Blind Holes in Machining Applications
Features
Back To Top- Production Tap
Tech Specs
Back To Top| Chamfer | Bottoming |
|---|---|
| Unit of Measure | Inch |
| Coating | TiN |
| Diameter | M10 X 1.5 |
| Flute Style | Helix |
| Shank Diameter | 0.3810 Inch |
| Hand of Tool | Right Hand |
| Pitch | 1.50 MM |
| Product Name | Tap |
| Thread Length | 0.7450 Inch |
| Coolant Through (Yes/No) | No |
| Number of Flutes | 3 |
| Shank Style | Square |
| Thread Limit | D6 |
| Brand | WIDIA |
| Overall Length | 2.9400 Inch |
| Thread Type | METRIC |
