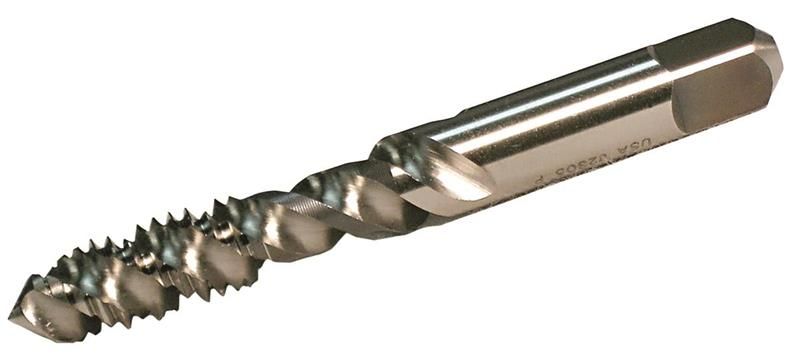

M12 x 1.75 HSS TiN Coated 3-Flute D6 Bottoming Spiral-Flute Tap
- Item Code: 19940
- Brand: WIDIA
- Unit Size: 1
Description
Series 2364
Bottoming Chamfer
Blind Holes in Machining Applications
Features
Back To Top- Production Tap
Tech Specs
Back To Top| Thread Length | 23.749 MM |
|---|---|
| Coolant Through (Yes/No) | No |
| Unit of Measure | Metric |
| Brand | WIDIA |
| Number of Flutes | 3 |
| Overall Length | 85.725 MM |
| Shank Style | Square |
| Thread Limit | D6 |
| Coating | TiN |
| Flute Style | Helix |
| Shank Diameter | 9.322 MM |
| Product Name | Tap |
| Diameter | M12 X 1.75 |
| Hand of Tool | Right Hand |
| Thread Type | METRIC |
| Chamfer | Bottoming |
| Pitch | 1.75 MM |
