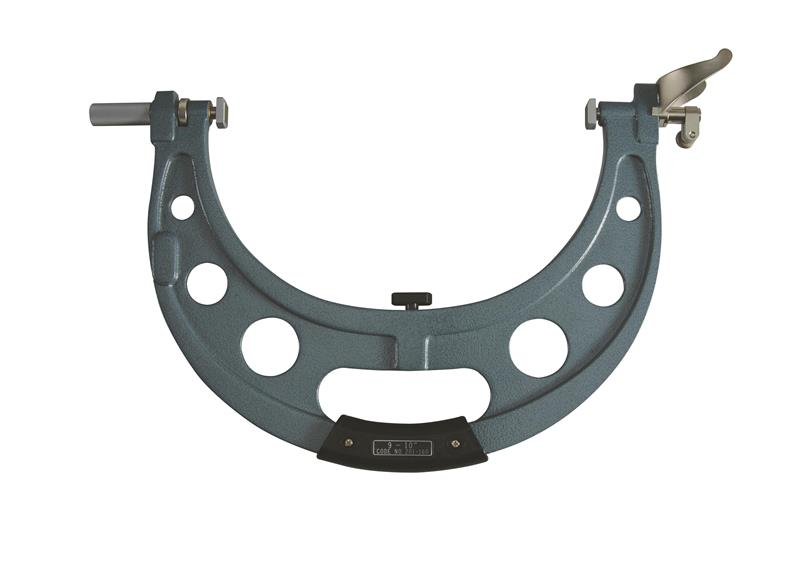

9 Inch - 10 Inch Dial Snap Gage, 3/8 Inch Stem Diameter, Indicator Not Included

  • Item Code: 201-160
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for quick GO/NG judgment of diameters of cylenders and shafts in machining processes.
    • Both front edges of the anvil are chamfered for easy insertion.
    • Wide flat carbide anvils.

Tech Specs

Back To Top
Range 9 - 10 In
Parallelism .00025 In or less
Stem Diameter Measurement 3/8 In
Contact Point Flatness .00004 In
Primary Measuring Range Upper - Inch 10 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 9 In
Measuring Force 15N± 3N
Brand Mitutoyo
Mechanical or Digital Mechanical
Individual or Set Individual
