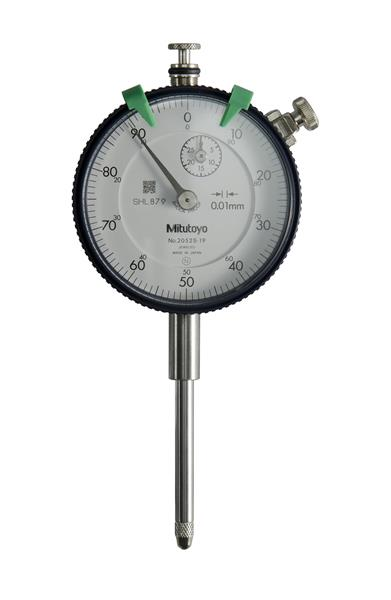

0.01mm, 30mm/(1mm per rev) Dial Indicator, 0-100, Flat Back, 8mm stem, Series 2, Shockproof, Jeweled, Damper

  • Item Code: 2052SB-19
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The revolutionary stem-bush design for trouble free stem clamping and longer clamping range.
    • No through screw-hole on the frame for high dust-resistance.
    • Greater rigidity in the bearing plate for reducing the tracing error (20% and 4-scrw mounting fo r incresing impact resistance.

Tech Specs

Back To Top
Accuracy ±0.02mm
Range 0 - 30mm
Back Type lug
Face Color Yellow
Brand Mitutoyo
Dial Face Reading 0-100
Mechanical or Digital Mechanical
Measuring Force =2N
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Metric 0mm
Primary Measuring Range Upper - Metric 30mm
Range Per Revolution 1mm
Stem Diameter Measurement 8mm
Resolution or Graduation 0.01mm
Individual or Set Individual
