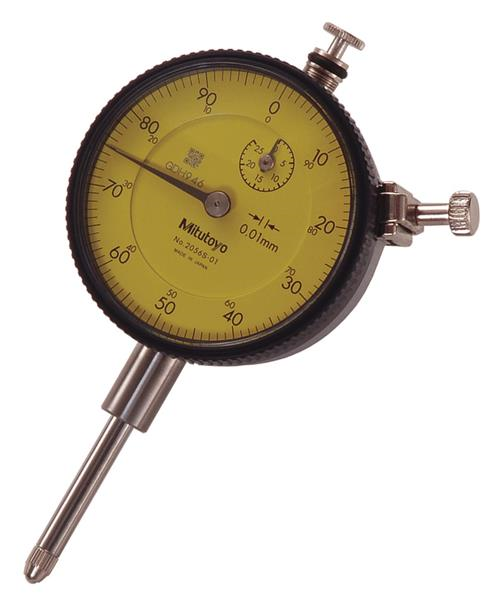

0.01mm, 25mm/(1mm per rev) Dial Indicator, 0-100, Flat Back, 3/8 Inch stem, Series 2

  • Item Code: 2056SB-01
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The revolutionary stem-bush design for trouble free stem clamping and longer clamping range.
    • No through screw-hole on the frame for high dust-resistance.
    • Greater rigidity in the bearing plate for reducing the tracing error (20% and 4-scrw mounting fo r incresing impact resistance.

Tech Specs

Back To Top
Resolution or Graduation 0.01mm
Face Color Yellow
Stem Diameter Measurement 3/8 in.
Back Type Flat
Individual or Set Individual
Range 0 - 25mm
Dial Face Reading 0-100
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Brand Mitutoyo
Accuracy ±0.01mm
Primary Measuring Range Lower - Metric 0mm
Primary Measuring Range Upper - Metric 25mm
Range Per Revolution 1mm
Measuring Force =2.5N
