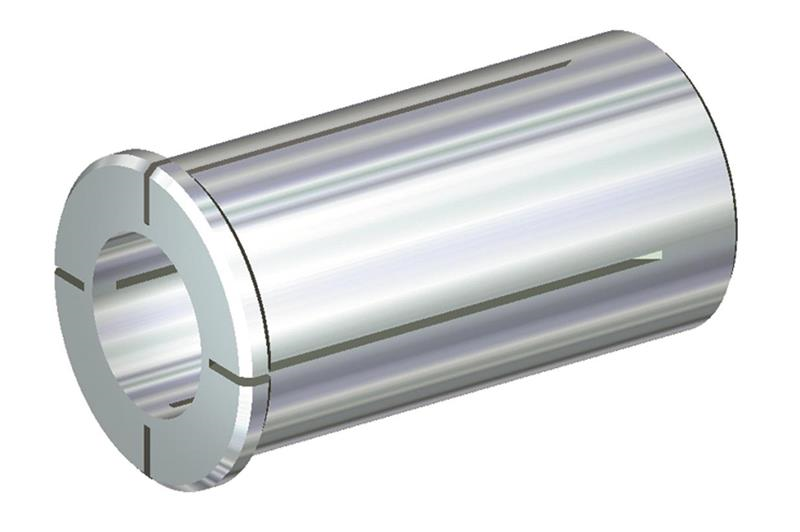

9mm I.D. x 20mm O.D. x 50mm Under Head Length Sealed Hydraulic Chuck Sleeve
- Item Code: 20MHC090M
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
One-piece design with slot configuration to seal coolant.
Cutting tool must be cylindrical and have a through hole when using coolant.
Sleeve must be inserted completely into the hydraulic chuck until shoulder mates against the hydraulic chuck front face.
Cutting tools must be in full contact with the sleeve bore length
Tech Specs
Back To Top| Adapt/Shank/Bore Diameter WKPS (In) | 0.3543 |
|---|---|
| Adapt/Shank/Bore Diameter WKPS (mm) | 9.000 |
| Adapt/Shank/Bore Diameter WKPS F | 0.3543 |
| Adapter/Shank/Bore Diameter (mm) | 20.000 |
| MachSide IntClear Diameter 1 (mm) | 16.500 |
| Sleeve Capacity Max (Inch) | 0.3543 |
| Sleeve Capacity Max (mm) | 9.000 |
| Sleeve Capacity Minimum (Inch) | 0.3540 |
| Sleeve Capacity Minimum (mm) | 8.991 |
| Catalog Sleeve Series | HC20M |
| Coolant Supply | Yes |
| Overall Length (Inch) | 2.1260 |
| Units of Tool (Extract) | MM - Metric |
| Brand | WIDIA-Erickson |
| Overall Length (Metric) | 54.000 |
| Shank Length (Metric) | 50.000 |
| Gage Length 1 (Metric) | 4.000 |
| Adapter Style Machine Side-EPP | ZYL-01 Straight Shank |
| Adapter Type Machine Side-EPP | ZYL - Cylindrical Adapter |
| Adapter/Shank/Bore Diameter (Inch) | 0.7874 |
| Shank Length (Inch) | 1.9685 |
| Adapter Size Machine Side-EPP | 0200 |
| Body Diameter 1 Workpce Side (mm) | 25.000 |
| Adapter/Shank/Bore Diameter (Fractional) | 0.7874 |
| Body Diameter 1 Workpce Side (In) | 0.9843 |
| Gage Length 1 (Inch) | 0.1575 |
| MachSide IntClear Diameter 1 (Inch) | 0.6496 |
