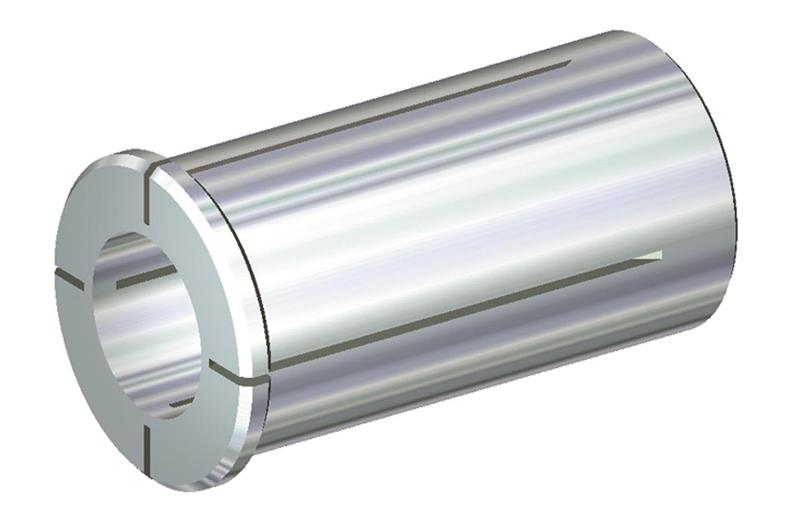

10mm I.D. x 20mm O.D. x 50mm Under Head Length Sealed Hydraulic Chuck Sleeve
- Item Code: 20MHC100M
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
One-piece design with slot configuration to seal coolant.
Cutting tool must be cylindrical and have a through hole when using coolant.
Sleeve must be inserted completely into the hydraulic chuck until shoulder mates against the hydraulic chuck front face.
Cutting tools must be in full contact with the sleeve bore length
Tech Specs
Back To Top| Adapt/Shank/Bore Diameter WKPS (In) | 0.3937 |
|---|---|
| Adapt/Shank/Bore Diameter WKPS F | 0.3937 |
| Gage Length 1 (Metric) | 4.000 |
| Adapt/Shank/Bore Diameter WKPS (mm) | 10.000 |
| Adapter Size Machine Side-EPP | 0200 |
| Adapter Type Machine Side-EPP | ZYL - Cylindrical Adapter |
| MachSide IntClear Diameter 1 (mm) | 16.500 |
| Adapter Style Machine Side-EPP | ZYL-01 Straight Shank |
| Adapter/Shank/Bore Diameter (Inch) | 0.7874 |
| Adapter/Shank/Bore Diameter (mm) | 20.000 |
| Catalog Sleeve Series | HC20M |
| Coolant Supply | Yes |
| Overall Length (Inch) | 2.1260 |
| Units of Tool (Extract) | MM - Metric |
| Brand | WIDIA-Erickson |
| Overall Length (Metric) | 54.000 |
| Shank Length (Metric) | 50.000 |
| Sleeve Capacity Max (Inch) | 0.3937 |
| Adapter/Shank/Bore Diameter (Fractional) | 0.7874 |
| Body Diameter 1 Workpce Side (In) | 0.9843 |
| MachSide IntClear Diameter 1 (Inch) | 0.6496 |
| Gage Length 1 (Inch) | 0.1575 |
| Sleeve Capacity Max (mm) | 10.000 |
| Shank Length (Inch) | 1.9685 |
| Body Diameter 1 Workpce Side (mm) | 25.000 |
| Sleeve Capacity Minimum (Inch) | 0.3933 |
| Sleeve Capacity Minimum (mm) | 9.991 |
