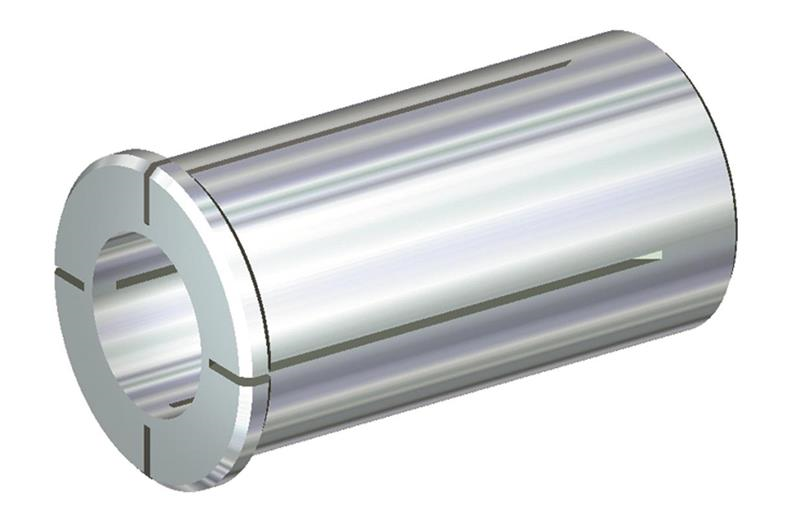

14mm I.D. x 20mm O.D. x 50mm Under Head Length Sealed Hydraulic Chuck Sleeve
- Item Code: 20MHC140M
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
One-piece design with slot configuration to seal coolant.
Cutting tool must be cylindrical and have a through hole when using coolant.
Sleeve must be inserted completely into the hydraulic chuck until shoulder mates against the hydraulic chuck front face.
Cutting tools must be in full contact with the sleeve bore length
Tech Specs
Back To Top| Adapt/Shank/Bore Diameter WKPS (In) | 0.5512 |
|---|---|
| Adapt/Shank/Bore Diameter WKPS (mm) | 14.000 |
| Adapt/Shank/Bore Diameter WKPS F | 0.5512 |
| Adapter Size Machine Side-EPP | 0200 |
| Body Diameter 1 Workpce Side (mm) | 25.000 |
| Sleeve Capacity Max (Inch) | 0.5512 |
| Sleeve Capacity Max (mm) | 14.000 |
| Sleeve Capacity Minimum (Inch) | 0.5507 |
| Sleeve Capacity Minimum (mm) | 13.989 |
| Catalog Sleeve Series | HC20M |
| Coolant Supply | Yes |
| Overall Length (Inch) | 2.1260 |
| Shank Length (Metric) | 50.000 |
| Units of Tool (Extract) | MM - Metric |
| Gage Length 1 (Inch) | 0.1575 |
| Adapter/Shank/Bore Diameter (Inch) | 0.7874 |
| Gage Length 1 (Metric) | 4.000 |
| MachSide IntClear Diameter 1 (Inch) | 0.6496 |
| MachSide IntClear Diameter 1 (mm) | 16.500 |
| Adapter Type Machine Side-EPP | ZYL - Cylindrical Adapter |
| Adapter/Shank/Bore Diameter (mm) | 20.000 |
| Shank Length (Inch) | 1.9685 |
| Brand | WIDIA-Erickson |
| Body Diameter 1 Workpce Side (In) | 0.9843 |
| Adapter Style Machine Side-EPP | ZYL-01 Straight Shank |
| Adapter/Shank/Bore Diameter (Fractional) | 0.7874 |
| Overall Length (Metric) | 54.000 |
