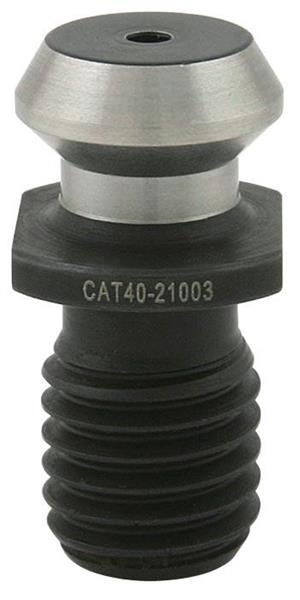

CAT40-ANSI 45° Retention Knob
- Item Code: 21003
- Brand: Techniks
- Unit Size: 1
Description
All mating surfaces are precision ground. Manufactured to the highest standards for maximum safety and long life. Hardened for maximum longevity.
Tech Specs
Back To Top| Knob Diameter | 0.740" |
|---|---|
| Spindle Taper | CAT40 Taper Holders |
| Angle | 45° |
| Neck | 0.490" |
| Brand | Techniks |
| Overall Length | 1.50" |
| For Use With | CAT40 Taper Holders |
| Style | ANSI |
| Threads | 5/8 - 11 |
