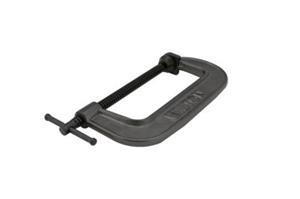

0 - 3 Inch Opening Capacity, 540A Series C-Clamp

  • Item Code: 22002
  • Brand: Wilton
  • Unit Size: 1

Description

540A Series Carriage C-Clamps are ideal for light industrial, woodworking and repair applications. They feature a black oxide coating, oscillating head, and sliding cross pin handle.

Features Tech Specs

Features

Back To Top
    • Frames made from high strength ductile iron castings
    • Sliding pin (vise type) handle, single acme thread rolled spindle and oscillating ball and socket tip
    • Wilton's heaviest-duty carriage clamp available
    • Lifetime Warranty

Tech Specs

Back To Top
Clamping Force (lbs) 1,800
Model Number 540A-3
Opening Capacity Max (In.) 0 - 3
Spindle Diameter (In.) 1/2
UPC 019907220022
Gross Weight (lbs.) 1.55
Country of Origin CN
Brand Wilton
Throat Depth (In.) 1-7/8
