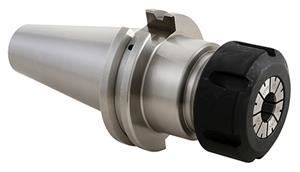

CAT 40 x ER 11 - 3 Inch Hex Nut Precision Collet Chuck Tool Holder
- Item Code: 22213-3
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Features
Back To Top- Voted Best Collet Chuck!
- Balanced to 25,000 RPM at G2.5
- T.I.R. 0.0001" measured fro taper to collet pocket
- PowerCOAT nut included for 75% more clamping power
Tech Specs
Back To Top| Gage Length-Face Contact (mm) | 73 |
|---|---|
| Balanced to | 25,000 RPM at G2.5 |
| Capacity Range (in) | 0.019" - 0.28" |
| Lock Nut Diameter (mm) | 19.1 |
| Body Diameter-Workpiece Side (in) | 0.748 |
| Lock Nut Diameter (in) | 0.75 |
| Overall Diameter (in) | 2.5 |
| Capacity Range (mm) | 0.5 - 7.1mm |
| Overall Length (mm) | 144.3 |
| Gage Length (in) | 3 |
| Gage Length-Face Contact (in) | 2.87 |
| Overall Diameter (mm) | 63.5 |
| Overall Length (in) | 5.68 |
| Unit of Tool | Metric or Inch |
| Body Diameter-Workpiece Side (mm) | 19 |
| Material | 8620 Steel |
| Brand | Techniks |
| Gage Length (mm) | 76.2 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
| Taper | CAT40 |
| Collet Series | ER11 |
