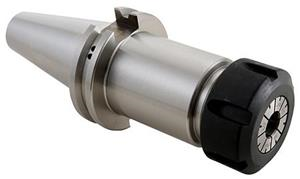

CAT 40 x ER 16 - 2.76 Inch AD+B, Hex Nut DIN B or Coolant Thru CoolFLEX Tool Holder
- Item Code: 22225F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Tech Specs
Back To Top| Type | V-Flange CoolFLEX Collet Chuck |
|---|---|
| Lock Nut Diameter (mm) | 32 |
| Body Diameter-Workpiece Side (in) | 1.102 |
| Lock Nut Diameter (in) | 1.26 |
| Overall Length (in) | 5.44 |
| Unit of Tool | Metric or Inch |
| Capacity Range (in) | 0.019" - 0.41" |
| Collet Series | ER16 |
| Overall Diameter (in) | 2.5 |
| Gage Length (mm) | 70.104 |
| Style | Single Ended |
| Balanced to | 25,000 RPM at G2.5 |
| Brand | Techniks |
| Gage Length (in) | 2.76 |
| Gage Length-Face Contact (in) | 2.63 |
| Overall Length (mm) | 138.2 |
| Capacity Range (mm) | 0.5 - 10.5mm |
| Gage Length-Face Contact (mm) | 66.9 |
| Overall Diameter (mm) | 63.5 |
| Taper | CAT40 |
| Body Diameter-Workpiece Side (mm) | 28 |
| Material | 8620 Steel |
