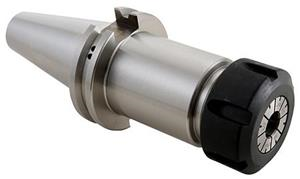

CAT 40 x ER 16 - 4 Inch AD+B, Hex Nut DIN B or Coolant Thru CoolFLEX Tool Holder
- Item Code: 22227F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Tech Specs
Back To Top| Lock Nut Diameter (mm) | 32 |
|---|---|
| Body Diameter-Workpiece Side (in) | 1.102 |
| Lock Nut Diameter (in) | 1.26 |
| Unit of Tool | Metric or Inch |
| Body Diameter-Workpiece Side (mm) | 28 |
| Capacity Range (in) | 0.019" - 0.41" |
| Collet Series | ER16 |
| Overall Diameter (in) | 2.5 |
| Gage Length (mm) | 101.6 |
| Gage Length-Face Contact (mm) | 98.4 |
| Material | 8620 Steel |
| Balanced to | 25,000 RPM at G2.5 |
| Brand | Techniks |
| Gage Length (in) | 4 |
| Taper | CAT40 |
| Capacity Range (mm) | 0.5 - 10.5mm |
| Gage Length-Face Contact (in) | 3.87 |
| Overall Diameter (mm) | 63.5 |
| Overall Length (in) | 6.68 |
| Overall Length (mm) | 169.7 |
| Style | Single Ended |
| Type | V-Flange CoolFLEX Collet Chuck |
