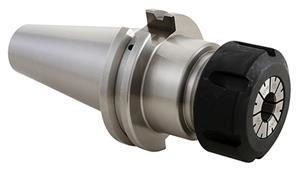

CAT 40 x ER 16 - 6 Inch Hex Nut Precision Collet Chuck Tool Holder
- Item Code: 22231-TECHNICKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Features
Back To Top- Voted Best Collet Chuck!
- Balanced to 25,000 RPM at G2.5
- T.I.R. 0.0001" measured fro taper to collet pocket
- PowerCOAT nut included for 75% more clamping power
Tech Specs
Back To Top| Gage Length-Face Contact (in) | 5.87 |
|---|---|
| Overall Length (in) | 8.68 |
| Body Diameter-Workpiece Side (in) | 1.102 |
| Capacity Range (mm) | 0.5 - 10.5mm |
| Gage Length (mm) | 152.4 |
| Lock Nut Diameter (in) | 1.26 |
| Taper | CAT40 |
| Balanced to | 25,000 RPM at G2.5 |
| Body Diameter-Workpiece Side (mm) | 28 |
| Capacity Range (in) | 0.019" - 0.41" |
| Collet Series | ER16 |
| Brand | Techniks |
| Gage Length-Face Contact (mm) | 149.2 |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Unit of Tool | Metric or Inch |
| Lock Nut Diameter (mm) | 32 |
| Overall Length (mm) | 220.5 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
| Gage Length (in) | 6 |
| Overall Diameter (mm) | 63.5 |
