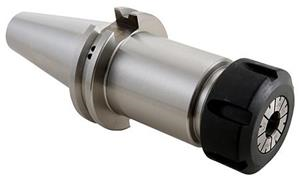

CAT 40 x ER 20 - 2.76 Inch AD+B, Hex Nut DIN B or Coolant Thru CoolFLEX Tool Holder
- Item Code: 22235F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Tech Specs
Back To Top| Gage Length (in) | 2.76 |
|---|---|
| Balanced to | 25,000 RPM at G2.5 |
| Gage Length-Face Contact (in) | 2.63 |
| Gage Length-Face Contact (mm) | 66.9 |
| Lock Nut Diameter (mm) | 35.1 |
| Overall Length (mm) | 138.2 |
| Body Diameter-Workpiece Side (in) | 1.339 |
| Taper | CAT40 |
| Brand | Techniks |
| Capacity Range (mm) | 0.5 - 14mm |
| Collet Series | ER20 |
| Overall Diameter (mm) | 63.5 |
| Overall Length (in) | 5.44 |
| Material | 8620 Steel |
| Capacity Range (in) | 0.019" - 0.55" |
| Style | Single Ended |
| Body Diameter-Workpiece Side (mm) | 34 |
| Lock Nut Diameter (in) | 1.38 |
| Overall Diameter (in) | 2.5 |
| Unit of Tool | Metric or Inch |
| Gage Length (mm) | 70.104 |
| Type | V-Flange CoolFLEX Collet Chuck |
