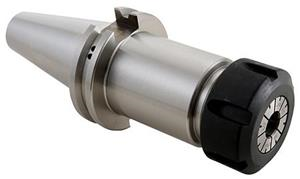

CAT 40 x ER 20 - 6 Inch AD+B, Hex Nut DIN B or Coolant Thru CoolFLEX Tool Holder
- Item Code: 22239F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Tech Specs
Back To Top| Capacity Range (in) | 0.019" - 0.55" |
|---|---|
| Unit of Tool | Metric or Inch |
| Collet Series | ER20 |
| Body Diameter-Workpiece Side (mm) | 34 |
| Gage Length-Face Contact (mm) | 149.2 |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Style | Single Ended |
| Balanced to | 25,000 RPM at G2.5 |
| Body Diameter-Workpiece Side (in) | 1.339 |
| Lock Nut Diameter (mm) | 35.1 |
| Overall Length (in) | 8.68 |
| Taper | CAT40 |
| Type | V-Flange CoolFLEX Collet Chuck |
| Brand | Techniks |
| Capacity Range (mm) | 0.5 - 14mm |
| Gage Length (in) | 6 |
| Overall Diameter (mm) | 63.5 |
| Overall Length (mm) | 220.5 |
| Gage Length (mm) | 152.4 |
| Gage Length-Face Contact (in) | 5.87 |
| Lock Nut Diameter (in) | 1.38 |
