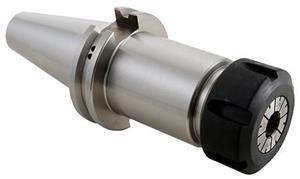

CAT 40 x ER 25 - 2.76 Inch Slotted Nut CoolFLEX Precision Collet Chuck Tool Holder
- Item Code: 22243F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Features
Back To Top- Voted Best Collet Chuck!
- Balanced to 25,000 RPM at G2.5
- T.I.R. 0.0001" measured fro taper to collet pocket
- PowerCOAT nut included for 75% more clamping power
Tech Specs
Back To Top| Body Diameter-Workpiece Side (mm) | 42 |
|---|---|
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Style | Single Ended |
| Unit of Tool | Metric or Inch |
| Gage Length (in) | 2.76 |
| Type | V-Flange CoolFLEX Collet Chuck |
| Gage Length (mm) | 70.104 |
| Body Diameter-Workpiece Side (in) | 1.654 |
| Balanced to | 25,000 RPM at G2.5 |
| Capacity Range (in) | 0.039" - 0.75" |
| Gage Length-Face Contact (in) | 2.63 |
| Gage Length-Face Contact (mm) | 66.9 |
| Lock Nut Diameter (in) | 1.65 |
| Overall Length (mm) | 138.2 |
| Taper | CAT40 |
| Lock Nut Diameter (mm) | 41.9 |
| Overall Length (in) | 5.44 |
| Brand | Techniks |
| Capacity Range (mm) | 1 - 19.1mm |
| Collet Series | ER25 |
| Overall Diameter (mm) | 63.5 |
