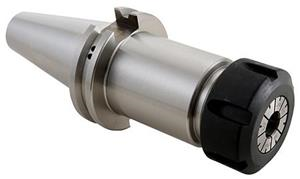

CAT 40 x ER 32 - 2.76 Inch AD+B, Slotted Nut DIN B or Coolant Thru CoolFLEX Tool Holder
- Item Code: 22253F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Tech Specs
Back To Top| Body Diameter-Workpiece Side (in) | 1.969 |
|---|---|
| Gage Length-Face Contact (mm) | 66.9 |
| Balanced to | 25,000 RPM at G2.5 |
| Body Diameter-Workpiece Side (mm) | 50 |
| Gage Length (in) | 2.76 |
| Gage Length-Face Contact (in) | 2.63 |
| Overall Length (mm) | 138.2 |
| Capacity Range (mm) | 1.1 - 21mm |
| Overall Diameter (mm) | 63.5 |
| Taper | CAT40 |
| Brand | Techniks |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Unit of Tool | Metric or Inch |
| Gage Length (mm) | 70.104 |
| Overall Length (in) | 5.44 |
| Lock Nut Diameter (in) | 1.97 |
| Capacity Range (in) | 0.043" - 0.83" |
| Collet Series | ER32 |
| Lock Nut Diameter (mm) | 50 |
| Style | Single Ended |
| Type | V-Flange CoolFLEX Collet Chuck |
