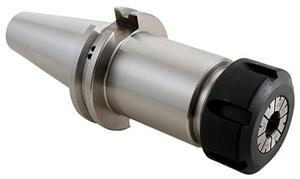

CAT 40 x ER 32 - 4 Inch Slotted Nut CoolFLEX Precision Collet Chuck Tool Holder
- Item Code: 22255F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Features
Back To Top- Voted Best Collet Chuck!
- Balanced to 25,000 RPM at G2.5
- T.I.R. 0.0001" measured fro taper to collet pocket
- PowerCOAT nut included for 75% more clamping power
Tech Specs
Back To Top| Gage Length (mm) | 101.6 |
|---|---|
| Capacity Range (in) | 0.043" - 0.83" |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Overall Length (in) | 6.68 |
| Style | Single Ended |
| Collet Series | ER32 |
| Gage Length-Face Contact (in) | 3.87 |
| Gage Length-Face Contact (mm) | 98.4 |
| Lock Nut Diameter (in) | 1.97 |
| Lock Nut Diameter (mm) | 50 |
| Overall Length (mm) | 169.7 |
| Type | V-Flange CoolFLEX Collet Chuck |
| Unit of Tool | Metric or Inch |
| Body Diameter-Workpiece Side (in) | 1.969 |
| Brand | Techniks |
| Overall Diameter (mm) | 63.5 |
| Taper | CAT40 |
| Body Diameter-Workpiece Side (mm) | 50 |
| Capacity Range (mm) | 1.1 - 21mm |
| Balanced to | 25,000 RPM at G2.5 |
| Gage Length (in) | 4 |
