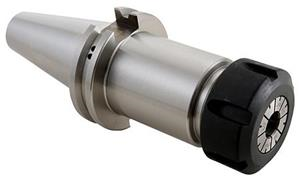

CAT 40 x ER 40 - 4 Inch Slotted Nut CoolFLEX Precision Collet Chuck Tool Holder

  • Item Code: 22263F
  • Brand: Techniks
  • Unit Size: 1

Description

Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.

Features Tech Specs

Features

Back To Top
    • Voted Best Collet Chuck!
    • Balanced to 25,000 RPM at G2.5
    • T.I.R. 0.0001" measured fro taper to collet pocket
    • PowerCOAT nut included for 75% more clamping power

Tech Specs

Back To Top
Balanced to 25,000 RPM at G2.5
Capacity Range (in) 0.086" - 1.02"
Lock Nut Diameter (mm) 63
Overall Length (in) 6.68
Gage Length-Face Contact (in) 3.87
Type V-Flange CoolFLEX Collet Chuck
Collet Series ER40
Gage Length-Face Contact (mm) 98.4
Material 8620 Steel
Overall Diameter (in) 2.5
Unit of Tool Metric or Inch
Body Diameter-Workpiece Side (in) 2.48
Lock Nut Diameter (in) 2.48
Overall Diameter (mm) 63.5
Body Diameter-Workpiece Side (mm) 63
Brand Techniks
Gage Length (in) 4
Overall Length (mm) 169.7
Style Single Ended
Gage Length (mm) 101.6
Capacity Range (mm) 2.2 - 26mm
Taper CAT40
