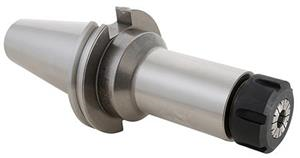

CAT 50 x ER 16 - 4 Inch AD+B, Hex Nut DIN or Coolant Thru CoolFLEX Tool Holder
- Item Code: 22281F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Tech Specs
Back To Top| Balanced to | 25,000 RPM at G2.5 |
|---|---|
| Brand | Techniks |
| Gage Length (in) | 4 |
| Overall Length (in) | 8 |
| Capacity Range (in) | 0.019" - 0.41" |
| Collet Series | ER16 |
| Body Diameter-Workpiece Side (in) | 1.102 |
| Lock Nut Diameter (in) | 1.26 |
| Overall Diameter (mm) | 98.43 |
| Unit of Tool | Metric or Inch |
| Overall Diameter (in) | 3.88 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
| Gage Length-Face Contact (mm) | 98.2 |
| Lock Nut Diameter (mm) | 32 |
| Capacity Range (mm) | 0.5 - 10.5mm |
| Gage Length-Face Contact (in) | 3.87 |
| Overall Length (mm) | 203.2 |
| Body Diameter-Workpiece Side (mm) | 28 |
| Gage Length (mm) | 101.6 |
| Material | 8620 Steel |
| Taper | CAT50 |
