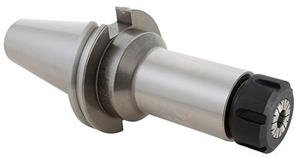

CAT 50 x ER 16 - 6 Inch AD+B, Hex Nut DIN or Coolant Thru CoolFLEX Tool Holder
- Item Code: 22285F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Tech Specs
Back To Top| Lock Nut Diameter (mm) | 32 |
|---|---|
| Overall Length (in) | 10 |
| Body Diameter-Workpiece Side (in) | 1.102 |
| Overall Diameter (mm) | 98.43 |
| Unit of Tool | Metric or Inch |
| Capacity Range (in) | 0.019" - 0.41" |
| Gage Length-Face Contact (mm) | 149 |
| Style | Single Ended |
| Body Diameter-Workpiece Side (mm) | 28 |
| Collet Series | ER16 |
| Lock Nut Diameter (in) | 1.26 |
| Material | 8620 Steel |
| Brand | Techniks |
| Balanced to | 25,000 RPM at G2.5 |
| Capacity Range (mm) | 0.5 - 10.5mm |
| Gage Length (in) | 6 |
| Gage Length-Face Contact (in) | 5.87 |
| Overall Length (mm) | 254 |
| Taper | CAT50 |
| Gage Length (mm) | 152.4 |
| Overall Diameter (in) | 3.88 |
| Type | V-Flange Collet Chuck |
