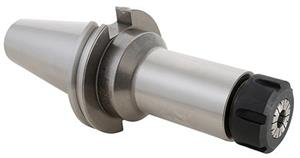

CAT 50 x ER 20 - 8 Inch AD+B, Hex Nut DIN or Coolant Thru CoolFLEX Tool Holder
- Item Code: 22295F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Tech Specs
Back To Top| Gage Length-Face Contact (mm) | 199.8 |
|---|---|
| Body Diameter-Workpiece Side (in) | 1.339 |
| Overall Length (in) | 12 |
| Taper | CAT50 |
| Balanced to | 25,000 RPM at G2.5 |
| Gage Length (mm) | 203.2 |
| Gage Length-Face Contact (in) | 7.87 |
| Lock Nut Diameter (mm) | 35.1 |
| Capacity Range (in) | 0.019" - 0.55" |
| Unit of Tool | Metric or Inch |
| Material | 8620 Steel |
| Overall Diameter (in) | 3.88 |
| Type | V-Flange Collet Chuck |
| Body Diameter-Workpiece Side (mm) | 34 |
| Gage Length (in) | 8 |
| Lock Nut Diameter (in) | 1.38 |
| Overall Diameter (mm) | 98.43 |
| Style | Single Ended |
| Brand | Techniks |
| Capacity Range (mm) | 0.5 - 14mm |
| Overall Length (mm) | 304.8 |
| Collet Series | ER20 |
