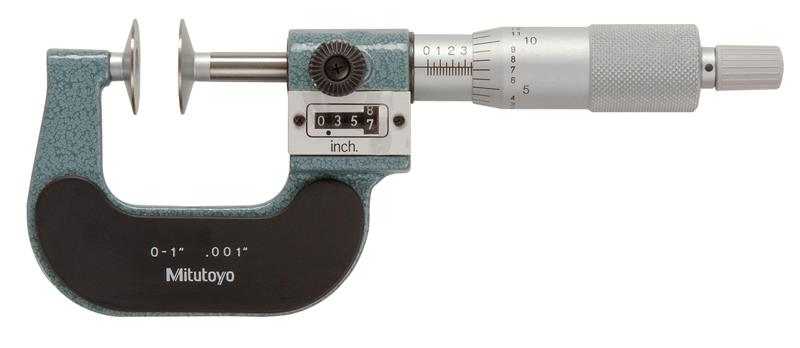

0-1 Inch, .001 Inch, Digit Counter Disk Micrometer, Ratchet Stop

  • Item Code: 223-125
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • With ratchet stop for constant force.
    • Provided with a mechanical digit counter for quick reading of measurements.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Parallelism .00016 In
Accuracy ±.0002 In
Contact Point Diameter .787 In
Finish Enamel
Individual or Set Individual
Resolution or Graduation .001 In
Mechanical or Digital Mechanical
Contact Point Flatness .00004 In
Thimble Diameter Measurement 18mm
Brand Mitutoyo
Primary Measuring Range Upper - Inch 1 In
Primary (Outside Diameter) Contact Point Material Hardened Steel
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 0 In
Range 0 - 1 In
