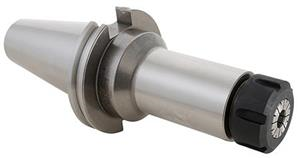

CAT 50 x ER 25 - 4 Inch AD+B, Slotted Nut DIN or Coolant Thru CoolFLEX Tool Holder
- Item Code: 22303F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Tech Specs
Back To Top| Body Diameter-Workpiece Side (in) | 1.654 |
|---|---|
| Capacity Range (mm) | 1 - 19.1mm |
| Gage Length-Face Contact (mm) | 98.2 |
| Body Diameter-Workpiece Side (mm) | 42 |
| Gage Length (mm) | 101.6 |
| Material | 8620 Steel |
| Style | Single Ended |
| Overall Diameter (mm) | 98.43 |
| Unit of Tool | Metric or Inch |
| Balanced to | 25,000 RPM at G2.5 |
| Brand | Techniks |
| Collet Series | ER25 |
| Gage Length (in) | 4 |
| Overall Diameter (in) | 3.88 |
| Taper | CAT50 |
| Type | V-Flange Collet Chuck |
| Capacity Range (in) | 0.039" - 0.75" |
| Gage Length-Face Contact (in) | 3.87 |
| Lock Nut Diameter (in) | 1.65 |
| Overall Length (mm) | 203.2 |
| Lock Nut Diameter (mm) | 41.9 |
| Overall Length (in) | 8 |
