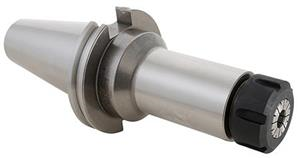

CAT 50 x ER 32 - 4 Inch CoolFLEX Collet Chuck Tool Holder
- Item Code: 22311F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Features
Back To Top- Coolant-thru spindle or thru flange (DIN B)
- Balanced to 25,000 RPM at G2.5
- T.I.R. 0.0001" or better from taper to collet pocket
Tech Specs
Back To Top| Body Diameter-Workpiece Side (mm) | 50 |
|---|---|
| Capacity Range (mm) | 1.1 - 21mm |
| Gage Length-Face Contact (in) | 3.87 |
| Body Diameter-Workpiece Side (in) | 1.969 |
| Capacity Range (in) | 0.043" - 0.83" |
| Overall Length (mm) | 203.2 |
| Lock Nut Diameter (mm) | 50 |
| Material | 8620 Steel |
| Style | Single Ended |
| Taper | CAT50 |
| Collet Series | ER32 |
| Gage Length (mm) | 101.6 |
| Overall Diameter (in) | 3.88 |
| Overall Diameter (mm) | 98.43 |
| Type | V-Flange Collet Chuck |
| Lock Nut Diameter (in) | 1.97 |
| Unit of Tool | Metric or Inch |
| Overall Length (in) | 8 |
| Balanced to | 25,000 RPM at G2.5 |
| Brand | Techniks |
| Gage Length (in) | 4 |
| Gage Length-Face Contact (mm) | 98.2 |
