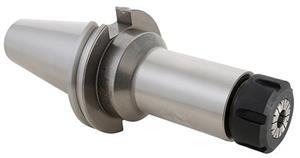

CAT 50 x ER 32 - 8 Inch CoolFLEX Collet Chuck Tool Holder
- Item Code: 22317F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Features
Back To Top- Coolant-thru spindle or thru flange (DIN B)
- Balanced to 25,000 RPM at G2.5
- T.I.R. 0.0001" or better from taper to collet pocket
Tech Specs
Back To Top| Lock Nut Diameter (mm) | 50 |
|---|---|
| Brand | Techniks |
| Material | 8620 Steel |
| Overall Length (mm) | 304.8 |
| Body Diameter-Workpiece Side (in) | 1.969 |
| Gage Length-Face Contact (mm) | 199.8 |
| Overall Diameter (in) | 3.88 |
| Style | Single Ended |
| Taper | CAT50 |
| Capacity Range (in) | 0.043" - 0.83" |
| Collet Series | ER32 |
| Gage Length (mm) | 203.2 |
| Lock Nut Diameter (in) | 1.97 |
| Overall Diameter (mm) | 98.43 |
| Type | V-Flange Collet Chuck |
| Unit of Tool | Metric or Inch |
| Balanced to | 25,000 RPM at G2.5 |
| Gage Length-Face Contact (in) | 7.87 |
| Body Diameter-Workpiece Side (mm) | 50 |
| Capacity Range (mm) | 1.1 - 21mm |
| Gage Length (in) | 8 |
| Overall Length (in) | 12 |
