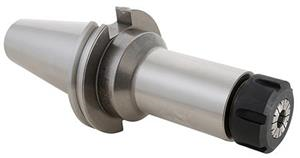

CAT 50 x ER 40 - 8 Inch CoolFLEX Collet Chuck Tool Holder

  • Item Code: 22327F
  • Brand: Techniks
  • Unit Size: 1

Description

Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.

Features Tech Specs

Features

Back To Top
    • Coolant-thru spindle or thru flange (DIN B)
    • Balanced to 25,000 RPM at G2.5
    • T.I.R. 0.0001" or better from taper to collet pocket

Tech Specs

Back To Top
Body Diameter-Workpiece Side (mm) 63
Brand Techniks
Collet Series ER40
Material 8620 Steel
Overall Length (mm) 304.8
Style Single Ended
Overall Diameter (in) 3.88
Overall Diameter (mm) 98.43
Type V-Flange Collet Chuck
Body Diameter-Workpiece Side (in) 2.48
Taper CAT50
Lock Nut Diameter (in) 2.48
Gage Length (mm) 203.2
Unit of Tool Metric or Inch
Balanced to 25,000 RPM at G2.5
Capacity Range (in) 0.086" - 1.02"
Gage Length-Face Contact (in) 7.87
Gage Length (in) 8
Gage Length-Face Contact (mm) 199.8
Overall Length (in) 12
Capacity Range (mm) 2.2 - 26mm
Lock Nut Diameter (mm) 63
