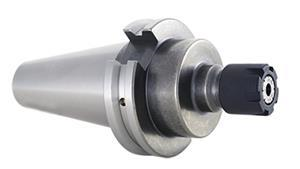

CAT40 x ER11 - 2.75 Inch, Precision ER Mini Nut Holder
- Item Code: 22352-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Tech Specs
Back To Top| Gage Length-Face Contact (in) | 2.63 |
|---|---|
| Lock Nut Diameter (mm) | 19.1 |
| Body Diameter-Workpiece Side (mm) | 19 |
| Collet Series | ER11 |
| Lock Nut Diameter (in) | 0.75 |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Style | Single Ended |
| Gage Length (mm) | 69.85 |
| Type | V-Flange Collet Chuck |
| Unit of Tool | Metric or Inch |
| Balanced to | 25,000 RPM at G2.5 |
| Body Diameter-Workpiece Side (in) | 0.748 |
| Overall Length (mm) | 138.2 |
| Taper | CAT40 |
| Brand | Techniks |
| Overall Diameter (mm) | 63.5 |
| Gage Length (in) | 2.75 |
| Overall Length (in) | 5.44 |
| Capacity Range (in) | 0.019" - 0.28" |
| Gage Length-Face Contact (mm) | 66.7 |
| Capacity Range (mm) | 0.5 - 7.1mm |
