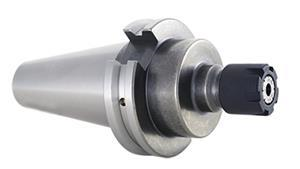

CAT40 x ER11 - 8.5 Inch, Precision ER Mini Nut Holder
- Item Code: 22354-8.5
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Tech Specs
Back To Top| Body Diameter-Workpiece Side (in) | 0.748 |
|---|---|
| Gage Length (in) | 8.5 |
| Gage Length (mm) | 215.9 |
| Gage Length-Face Contact (in) | 8.37 |
| Gage Length-Face Contact (mm) | 212.7 |
| Overall Length (in) | 11.18 |
| Lock Nut Diameter (in) | 0.75 |
| Lock Nut Diameter (mm) | 19.1 |
| Capacity Range (in) | 0.019" - 0.28" |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Style | Single Ended |
| Capacity Range (mm) | 0.5 - 7.1mm |
| Type | V-Flange Collet Chuck |
| Unit of Tool | Metric or Inch |
| Overall Length (mm) | 284 |
| Body Diameter-Workpiece Side (mm) | 19 |
| Collet Series | ER11 |
| Overall Diameter (mm) | 63.5 |
| Taper | CAT40 |
| Balanced to | 25,000 RPM at G2.5 |
| Brand | Techniks |
